Audioanschluss : 1x 3,5-mm-Klinkenbuchse, ALC897
Markenname : XCY
COM-Anschlüsse : 2x RS232-Seriellanschlüsse
Gehäusematerial : Aluminiumlegierung
Zertifizierung : CE, FCC, RoHS
Konstruktion : Lüfterlose passive Kühlung
Abmessungen : 135 x 124 x 40 mm
Grafik : Intel HD-Grafik
Grafikkartentyp : Integrierte Karte
Festplattenkapazität : 120 GB
Festplattentyp : mSATA SSD
Hochbesorgniserregende Chemikalie : Keine
LAN-Anschlüsse : 2x Realtek 8111H Gigabit Ethernet
Maximale Auflösung : FHD 1920*1080P
Speicherkapazität : ≥ 4 GB
Speichertyp : SODIMM DDR3L / DDR4
Modellnummer : X30G
Unterstützte Betriebssysteme : Windows 10, Windows 8.1, Windows 7, Linux, Ubuntu
Herkunft : Festlandchina
Prozessormarke : Intel
Prozessor-Hauptfrequenz : Abhängig von der CPU
Prozessormodell : Intel Celeron J4125, J6412, J2900, 3805U, N5105
Typ : Mini-Desktop, Mini-PC

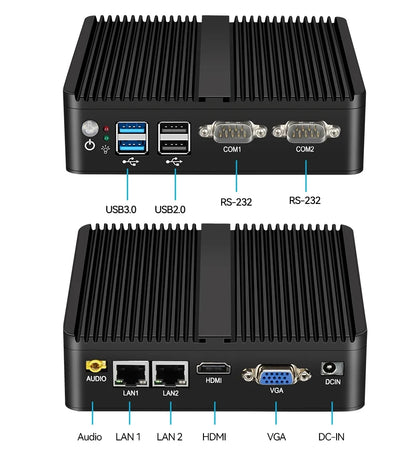

USB-Anschlüsse : 4x USB oder 6x USB-Anschlüsse
Verwendung : Multimedia

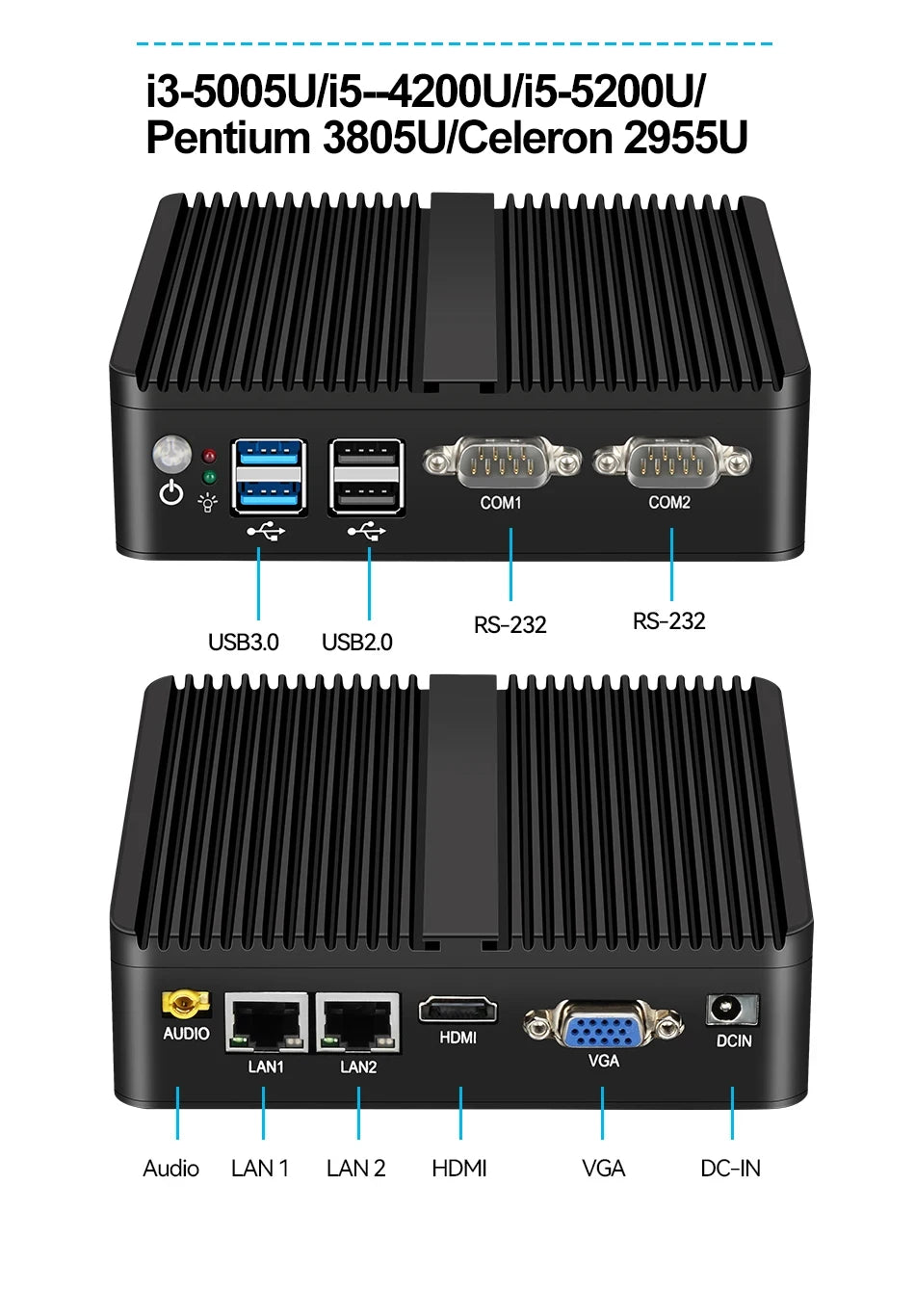

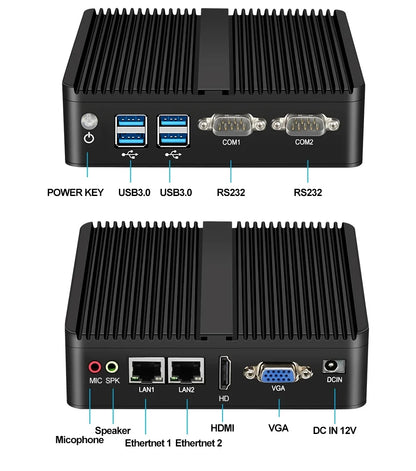

Videoausgänge : 1x HDMI, 1x VGA
WLAN : 1x Mini-PCIe-Steckplatz für WLAN
Betriebsspannung : DC12V-3A/5A
- Flexibler Arbeitsspeicher und Speicher, 1x Speicherslot, maximale Unterstützung bis zu 8 GB; Modell J6412 unterstützt eine M.2 NVME/SATA SSD und eine 2,5-Zoll-HDD/SSD, andere Modelle unterstützen eine mSATA SSD und eine 2,5-Zoll-SSD/HDD;

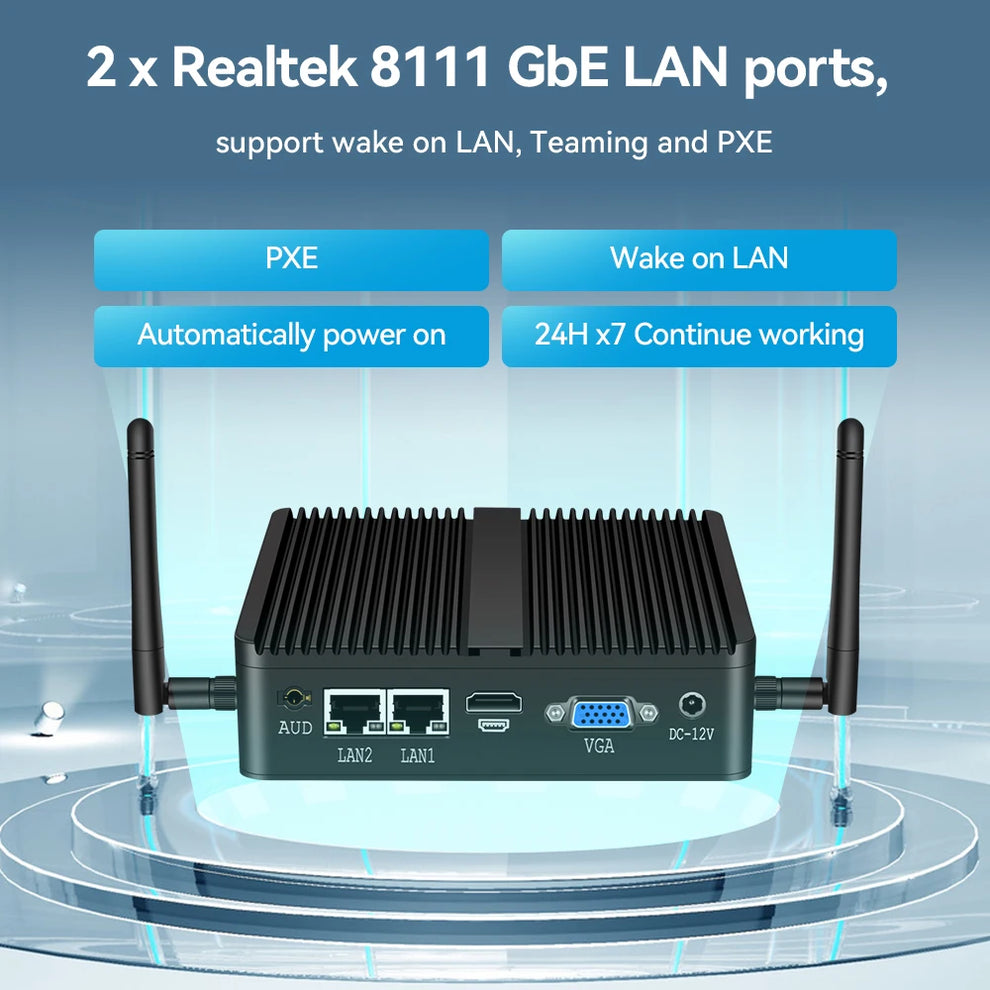

- 2x Realtek 8111H Gigabit Ethernet, unterstützt Wake on LAN, PXE-Boot.
- 2x COM-Seriell-Schnittstellen, Modell J6412/J2900/N2840: Zwei COM-Schnittstellen unterstützen die Anpassung an RS485/RS232, andere Modelle: Zwei COM-Schnittstellen im RS232-Modus.
- HDMI VGA unterstützt unabhängigen HD-Videoausgang;
- Lüfterlose Wärmeableitung durch Aluminiumgehäuse;
- 1x Mini-PCIe-Steckplatz zur Unterstützung der Erweiterung mit WiFi/4G-LTE-Modulen;
- Unterstützung für automatisches Einschalten nach Wiederherstellung der Netzstromversorgung;
Prozessoren |
Intel Celeron J4125, 4 Kerne, 4 Threads, 4 MB Cache, 2,0 GHz, bis zu 2,70 GHz Intel Celeron J6412, 4 Kerne, 4 Threads, 1,5 MB L2-Cache, 2,0 GHz, bis zu 2,60 GHz Intel Celeron N5105, 4 Kerne, 4 Threads, 4 MB Cache, 2,0 GHz, bis zu 2,90 GHz Intel Pentium J2900, 4 Kerne, 4 Threads, 2 MB Cache, 2,41 GHz bis 2,66 GHz Intel Celeron N2840, 2 Kerne, 2 Threads, 1 MB Cache, 2,16 GHz, bis zu 2,58 GHz |
Speichertypen |

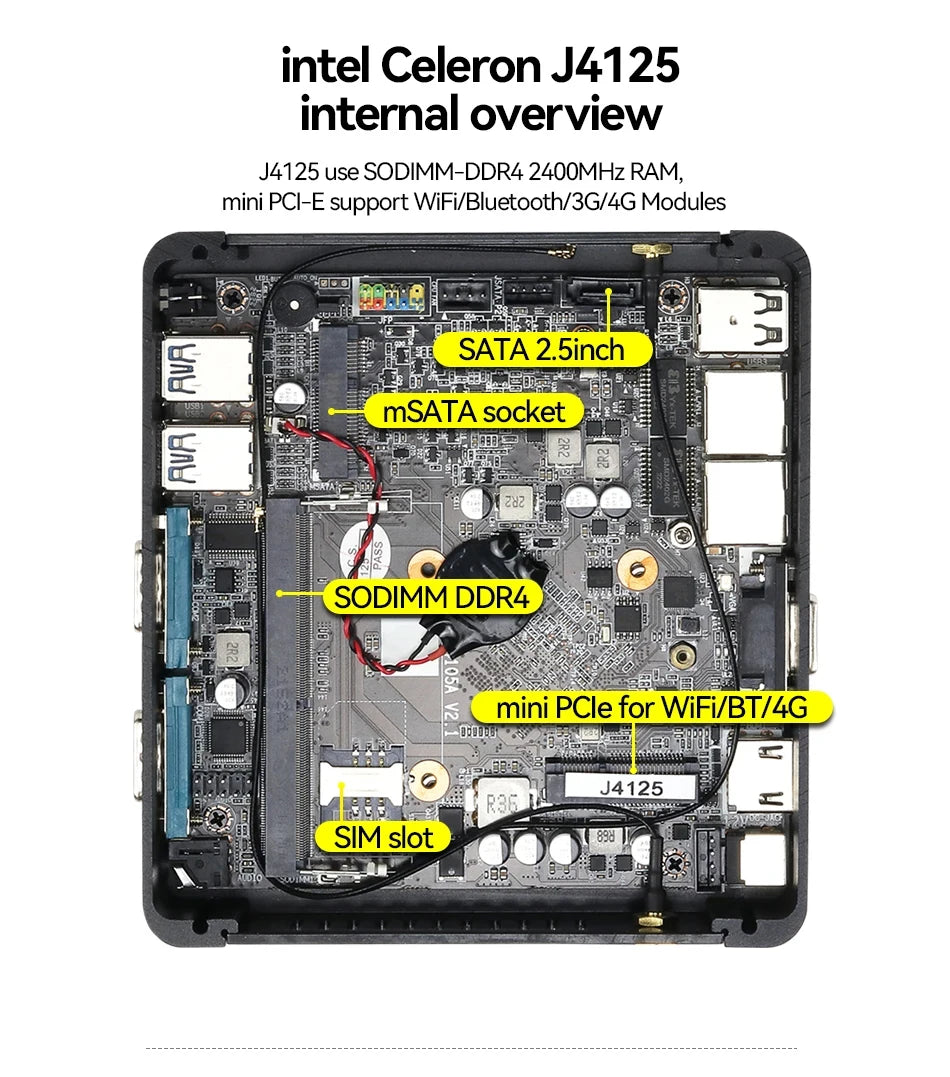

Die Prozessoren J4125, J6412 und N5105 verwenden 1x SODIMM DDR4 RAM. |
Festplattentypen |

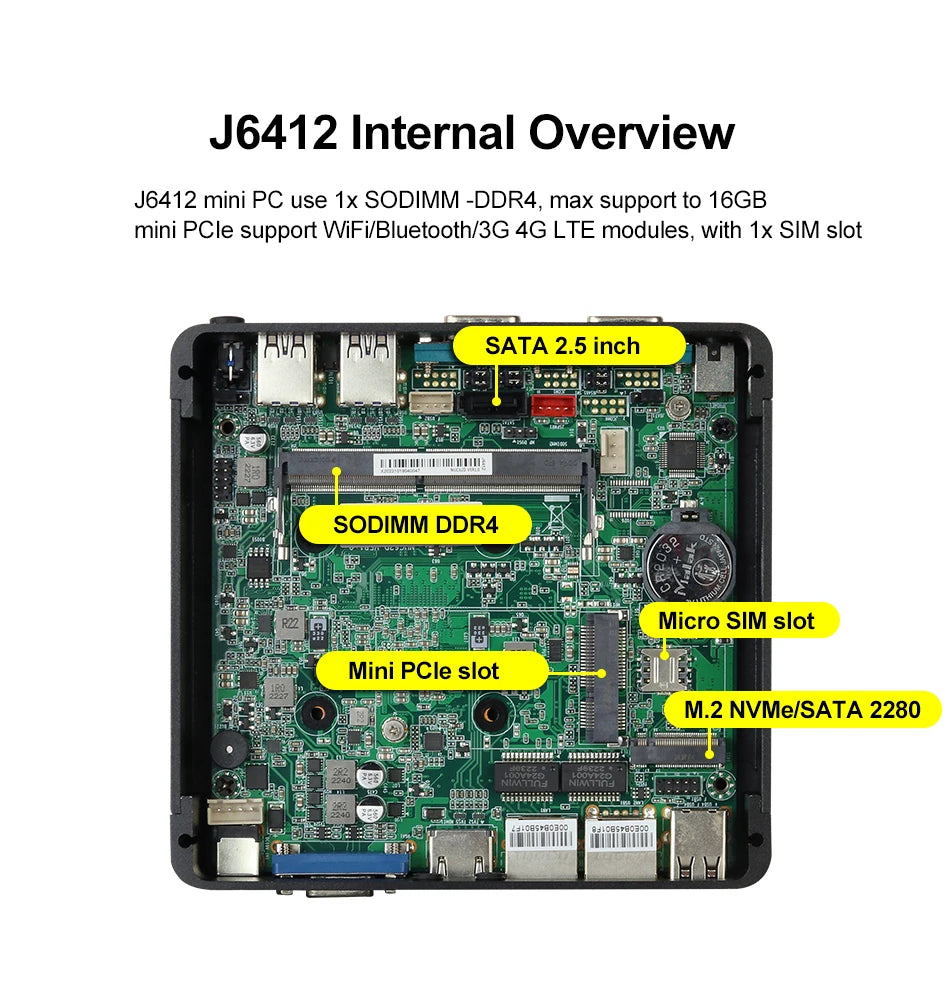

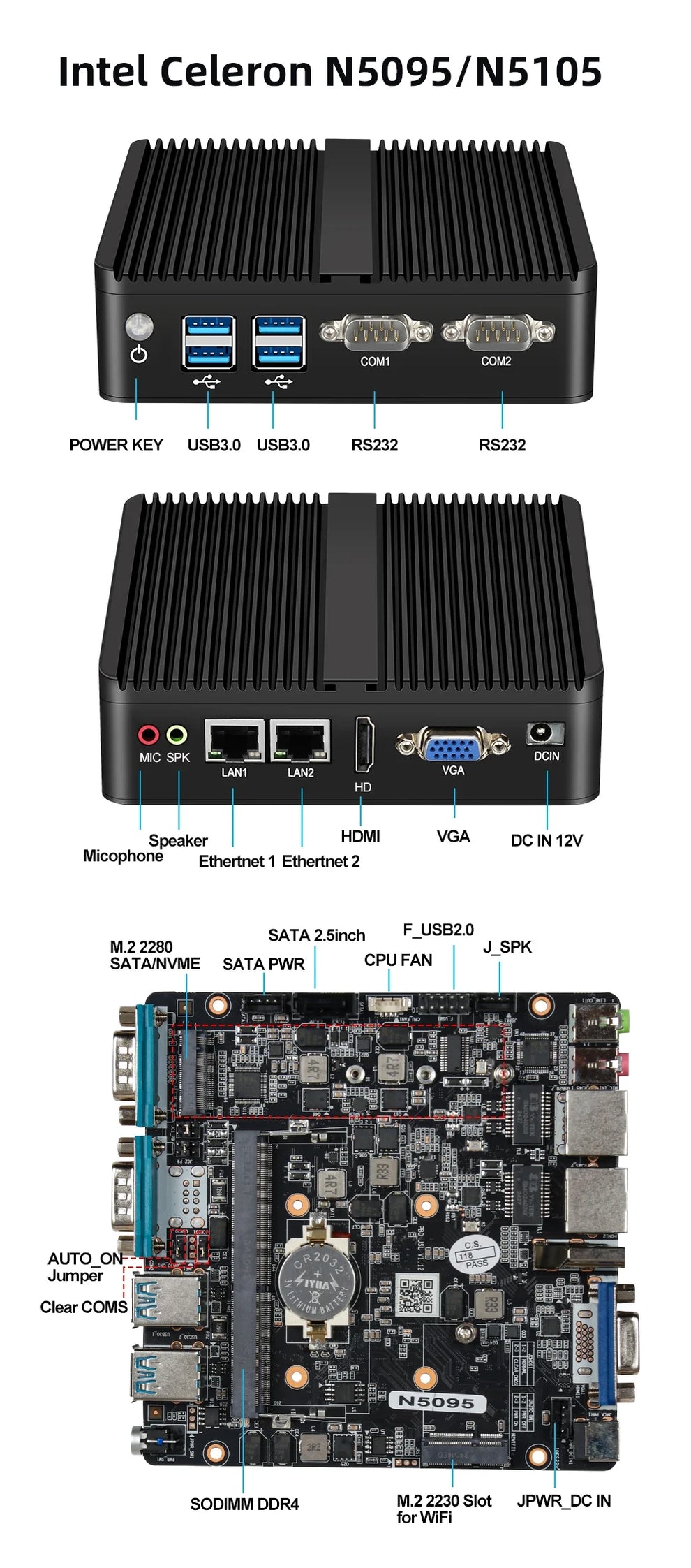

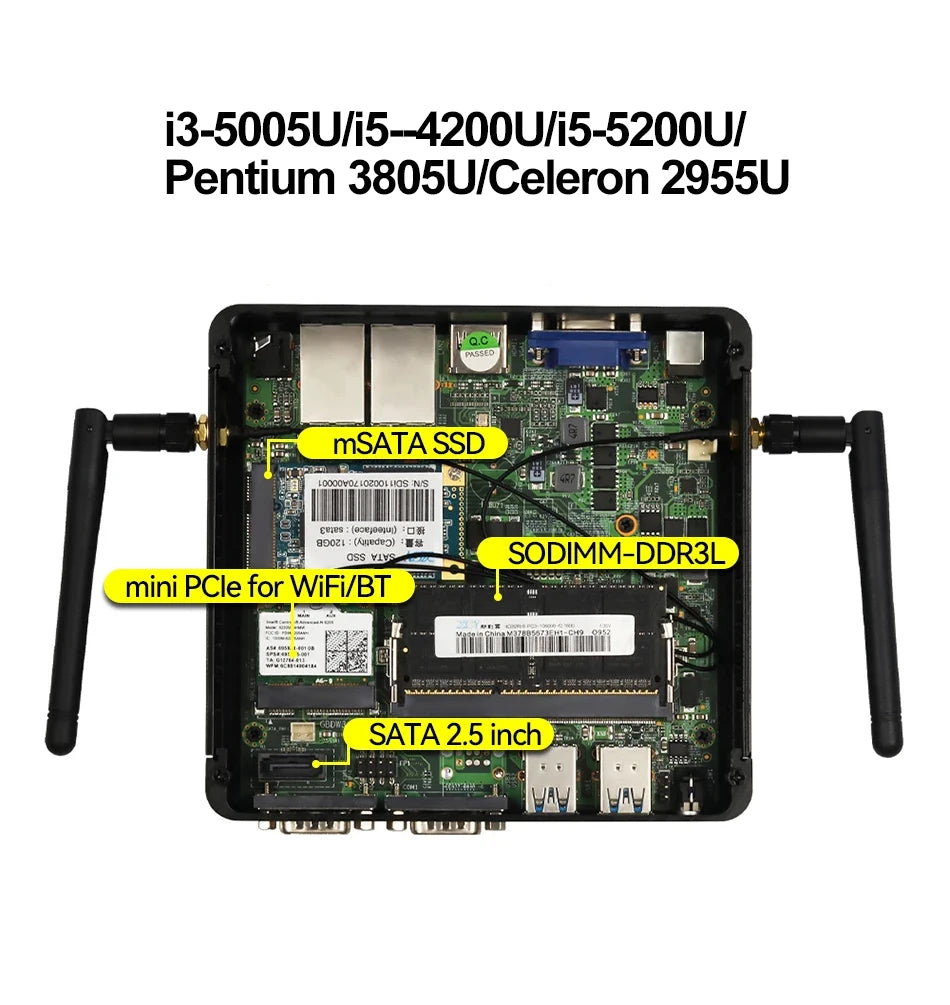

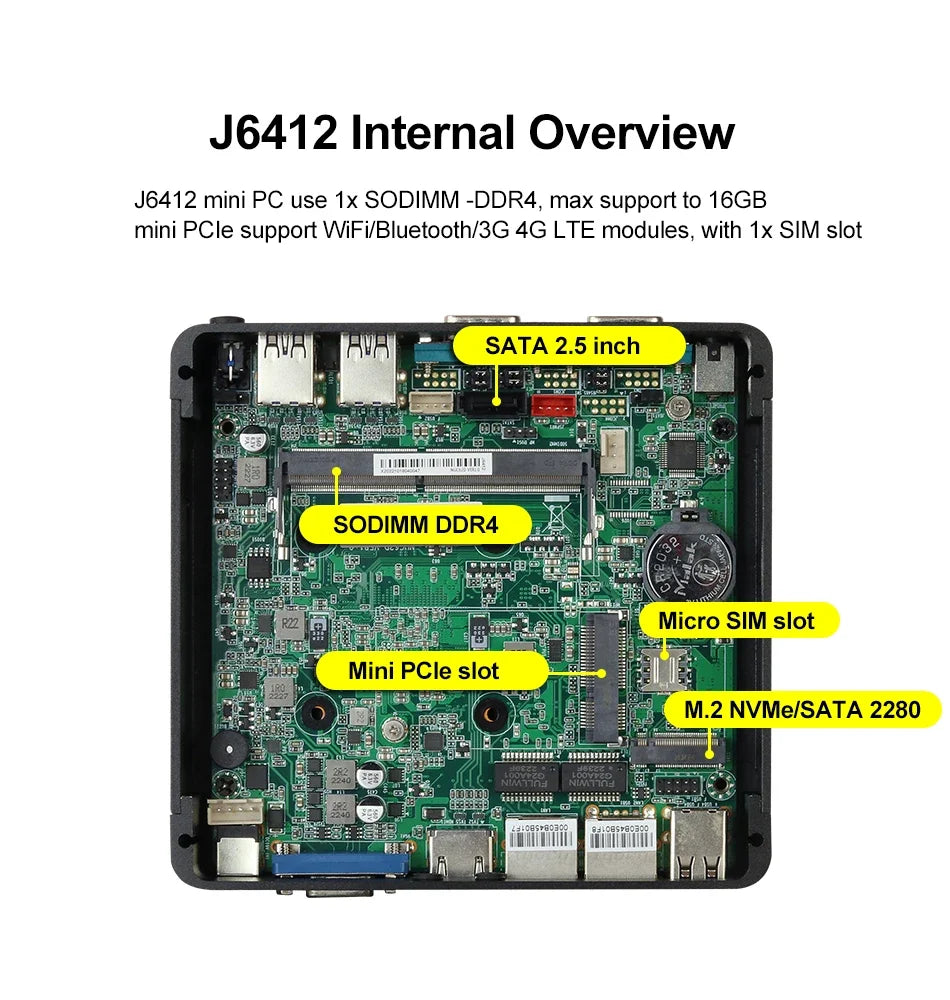

J6412 unterstützt 1x M.2 NVME/SATA 2280 SSD, 1x 2,5 Zoll HDD/SSD; N5105 verwendet M.2 NVMe 2280 SSD, 1x 2,5 Zoll HDD/SSD; Andere CPUs unterstützen 1x mSATA SSD, 1x 2,5 Zoll SATA HDD/SSD |
Prozessorgrafik |
J4125/N5105: Intel UHD Graphics 600 J6412: Intel UHD-Grafik für Prozessoren der 10. Generation 2955U/J2900/3805U/N2840: Intel HD-Grafik i3-4005U: Intel HD Graphics 4400 i3-5005U: Intel HD Graphics 5500 |
Netzwerkschnittstellen |
2x GbE RJ45 Realtek 8111H, unterstützt Wake-on-LAN, PXE-Boot |
Erweiterung |
1x Mini-PCI-E-Steckplatz für WiFi/Bluetooth/3G/4G-Module, J6412/J4125/J2900/N2840 Motherboards mit 1x SIM-Steckplatz; |
Betriebssystemunterstützung |
J6412 unterstützt Windows 11, Windows 10, Linux/Ubuntu/CentOS J4125 N5105 unterstützt Windows 10, Windows 8.1, Linux/Ubuntu/CentOS i3-4005U/i3-5005U, Celeron 2955U/N2840, Pentium 3805U/J2900 unterstützen Windows 10, Windows 8.1, Windows 7, Linux/Ubuntu/CentOS |

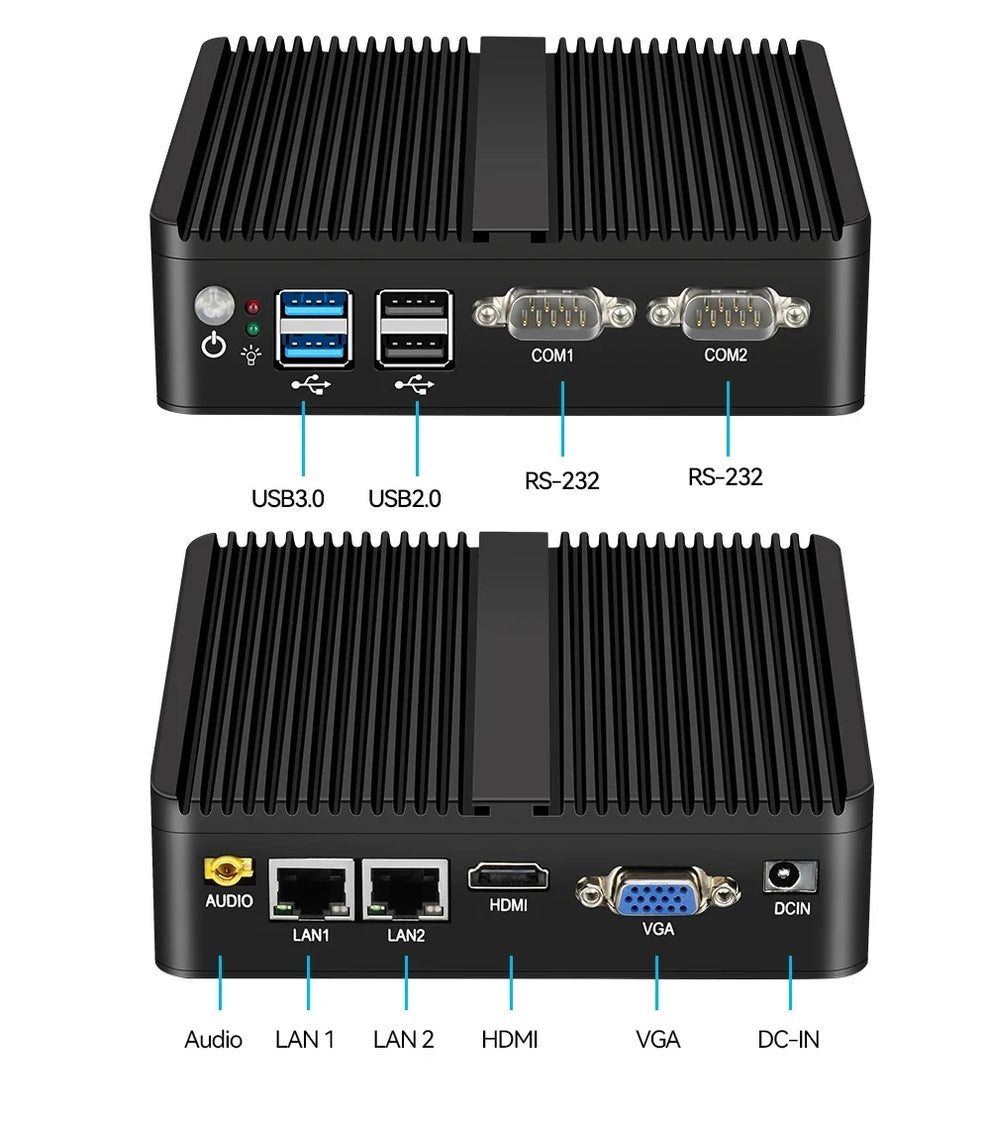

USB-Anschlüsse |

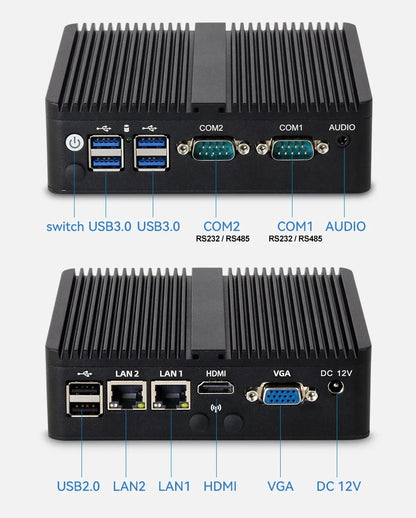

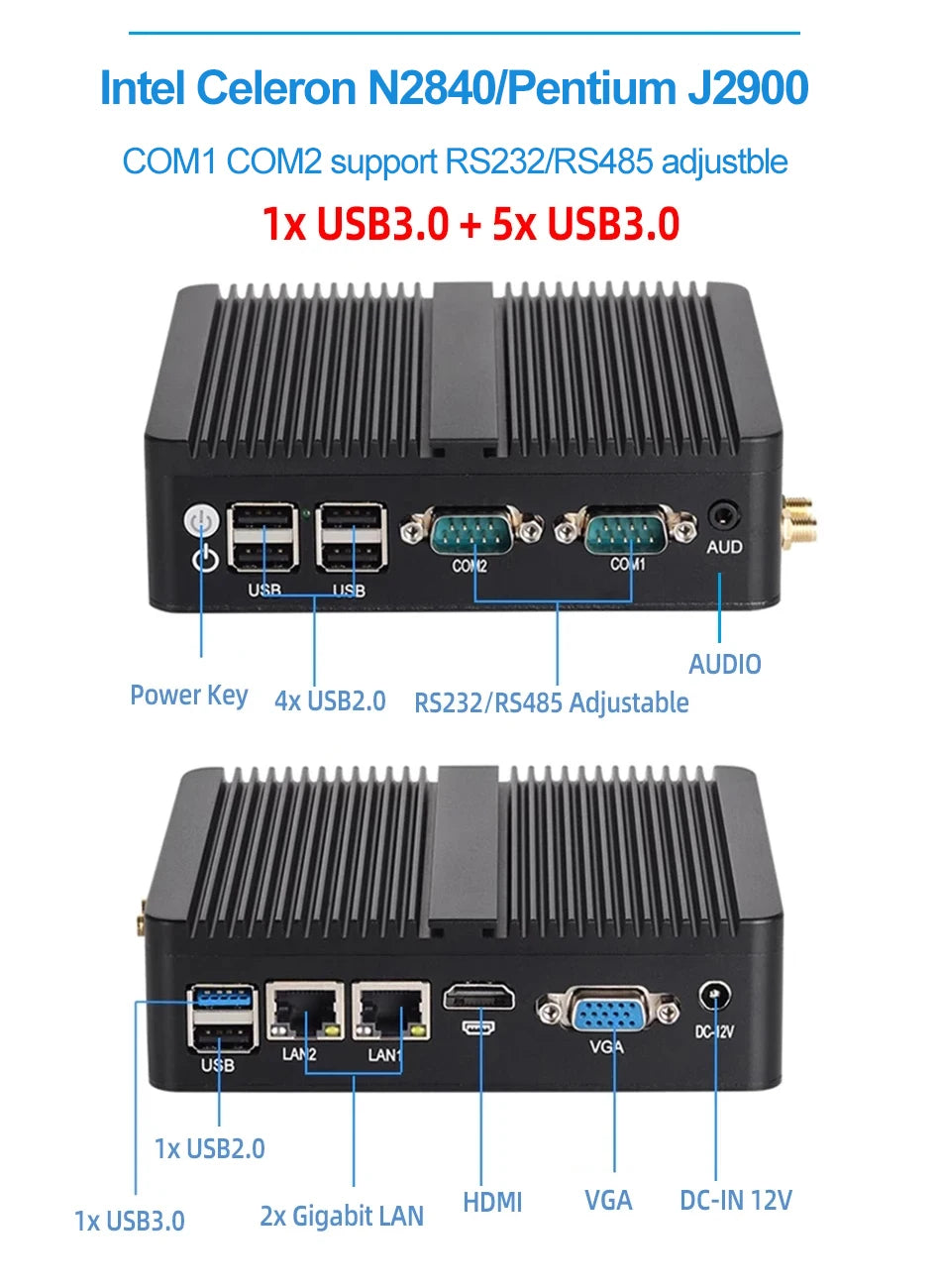

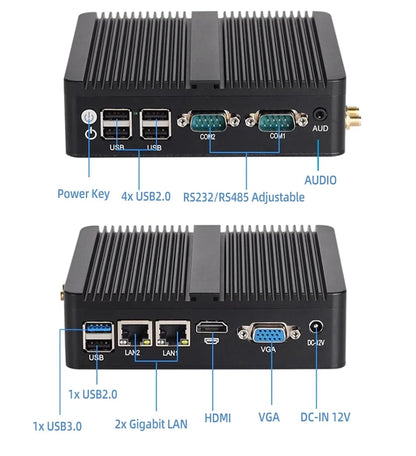

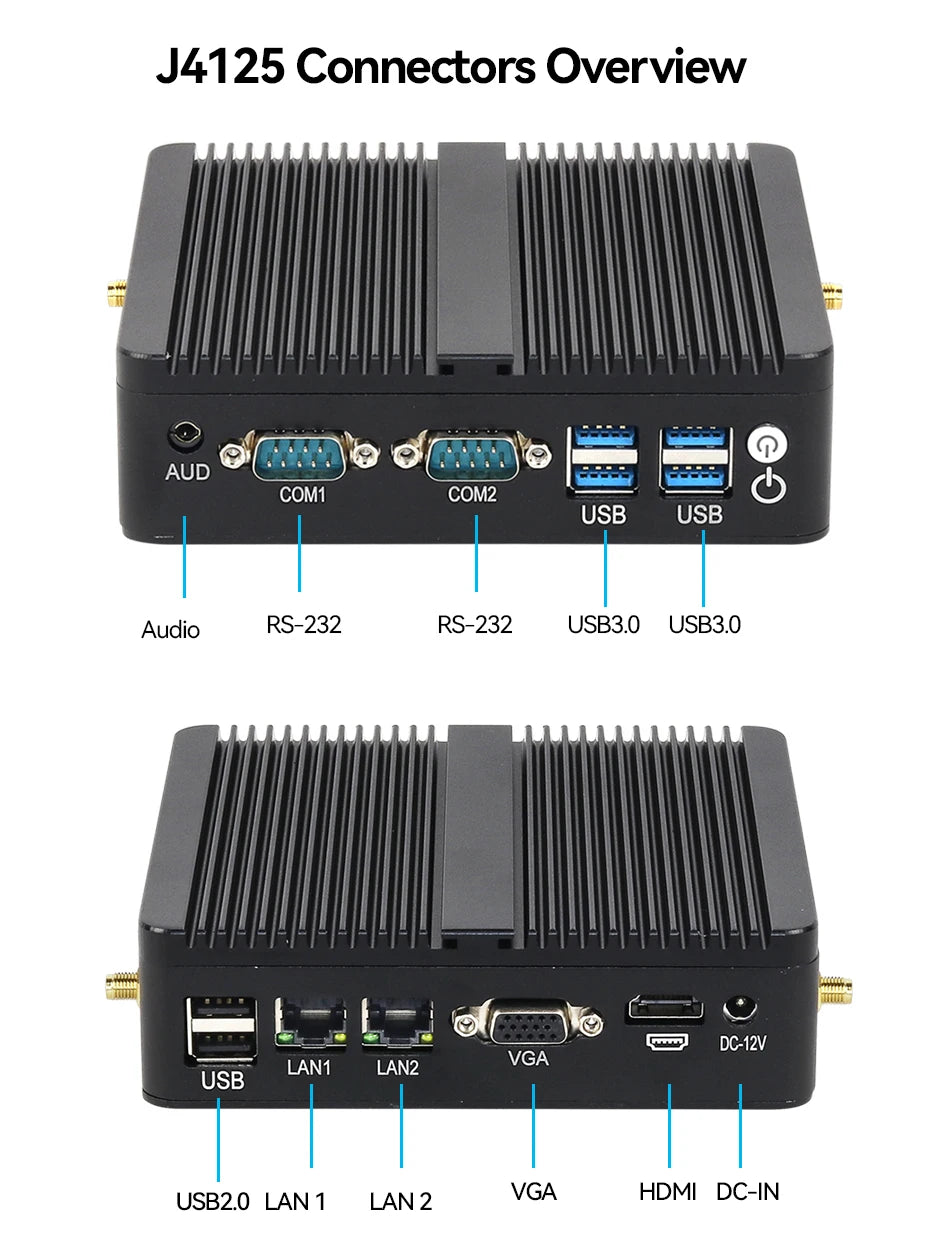

J4125 J6412: 4x USB 3.0 + 2x USB 2.0 J2900/N2840: 1x USB 3.0 + 5x USB 2.0 N5105: 4x USB 3.0 |
DisplayPort |

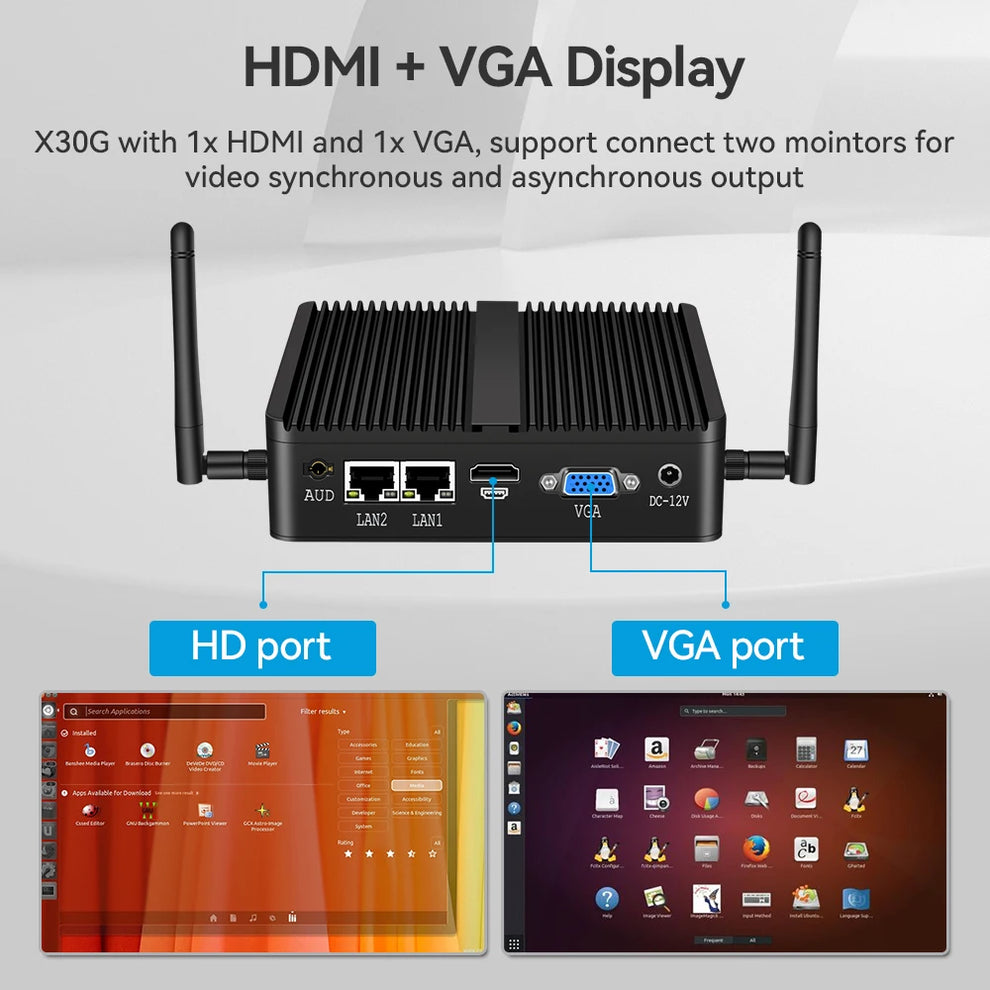

1x VGA, 1x HDMI, Unterstützt die unabhängige Videoausgabe von zwei Monitoren. |
COM-Anschlüsse |

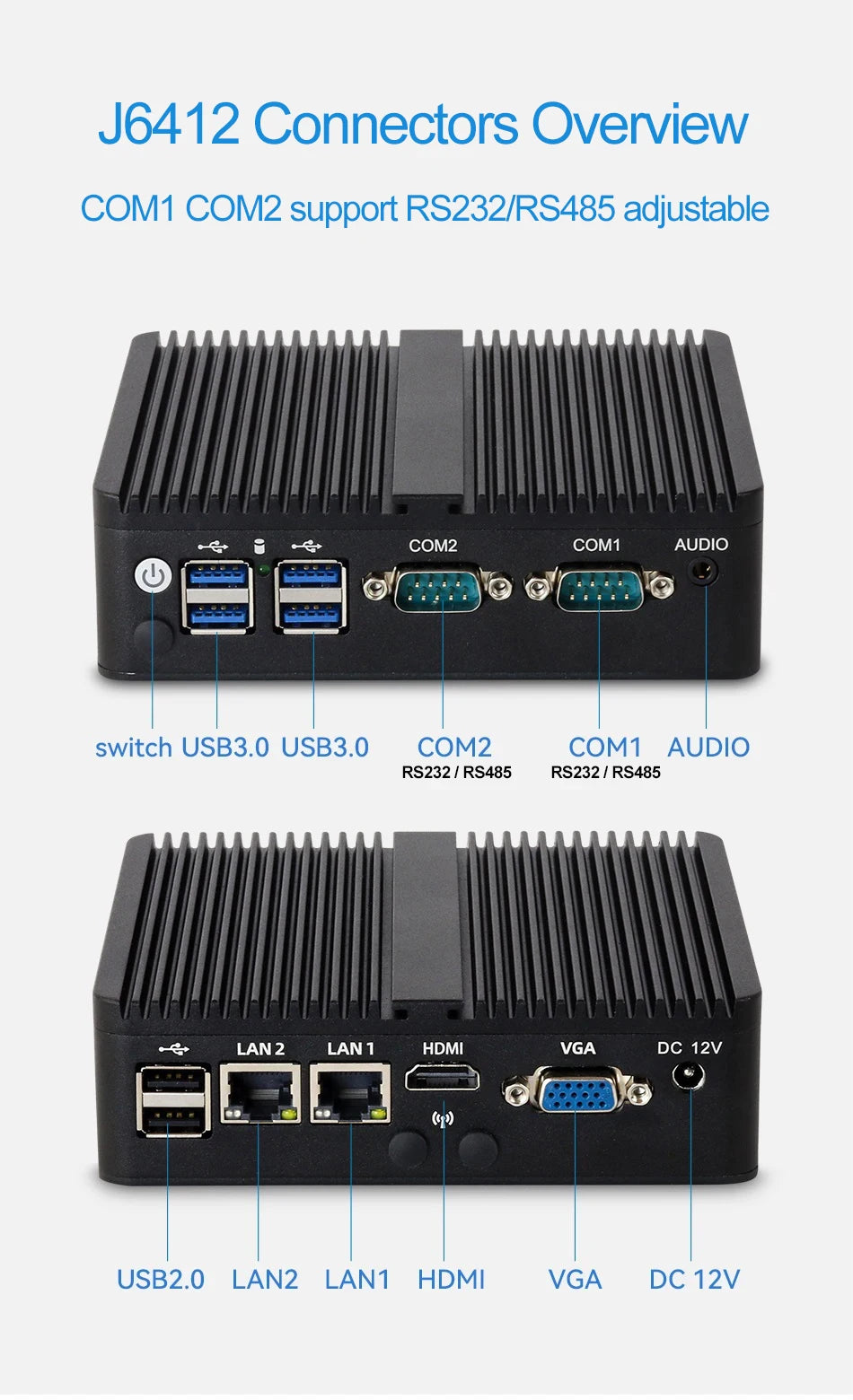

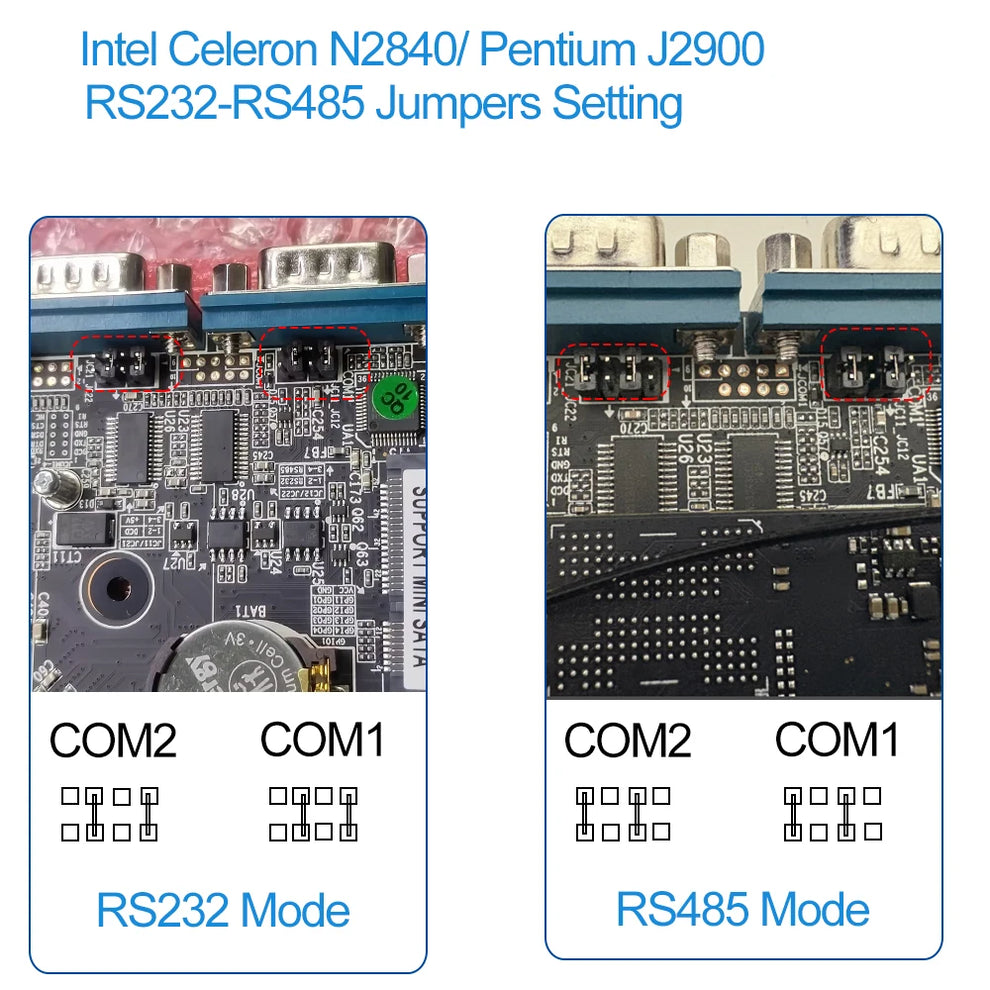

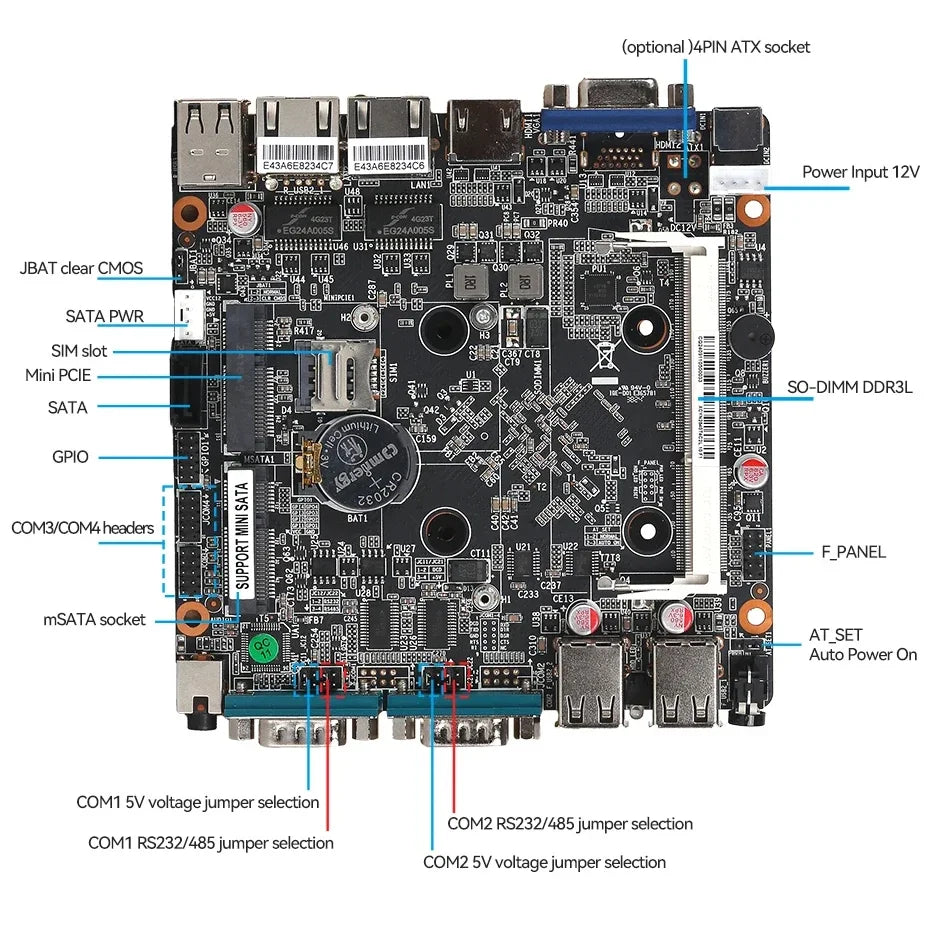

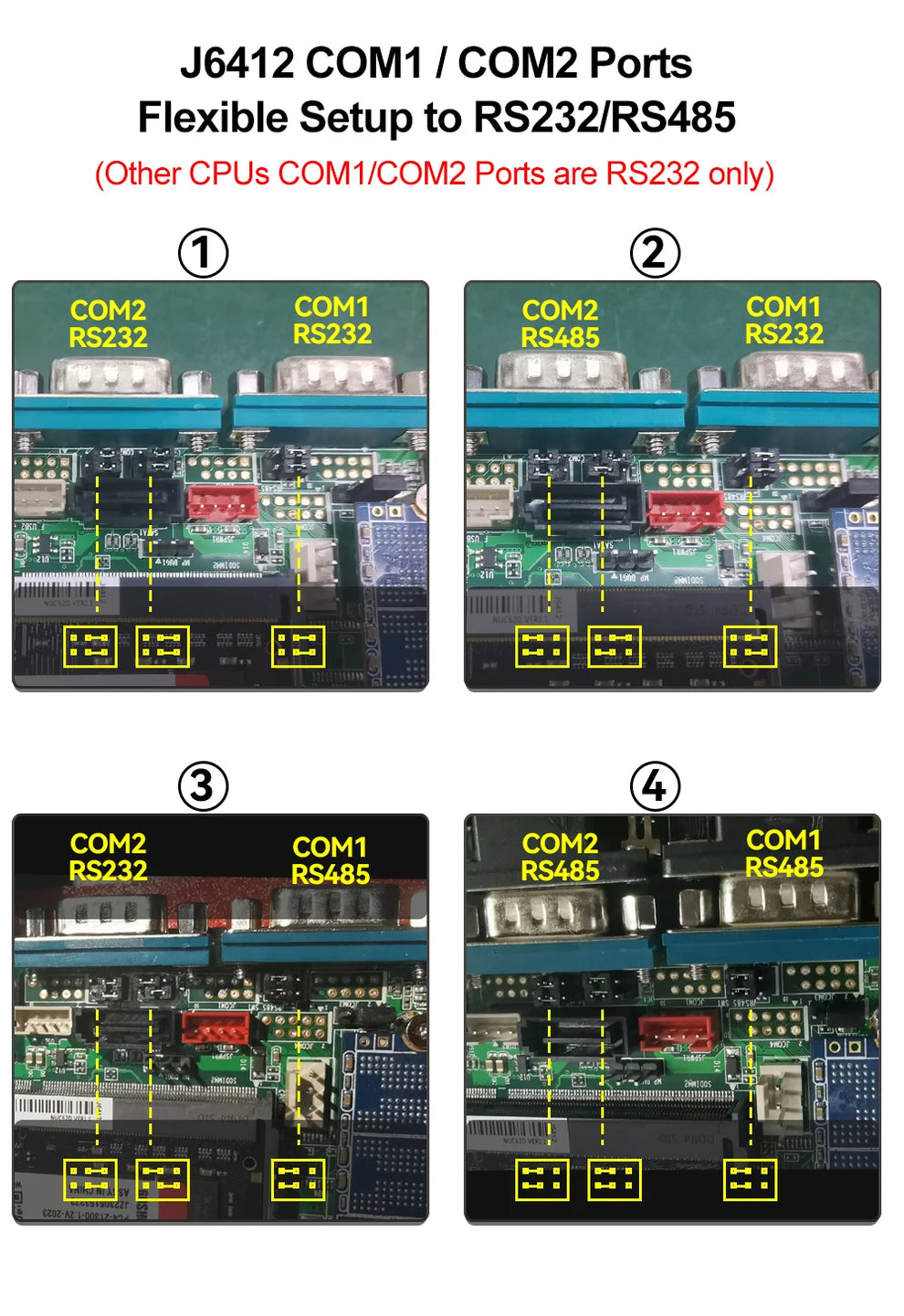

J6412/J2900/N2840: 2x RS-232/RS-485, jumperfreie Einstellung Weitere CPUs: 2x RS-232 |
Audioanschlüsse |
Realtek RTL662/897 HD-Audio, 3,5-mm-Kombi-Audiobuchse Unterstützt Mikrofon-Eingang, Line-Ausgang |
Konstruktion |
Lüfterlose passive Kühlung |
Fallmaterialien |
Aluminiumgehäuse |
Dimension |
135 x 124 x 40 mm |
Nettogewicht |
1,0 kg |
Lagertemperatur |
﹣ 20 ℃ bis +60 ℃ |
Betriebstemperatur |
﹣ 20 ℃ bis +60 ℃ |
RH |
5 % bis 90 % bei 30 °C , nicht kondensierend |
Betriebsspannung |
DC12V-3A/5A (kundenspezifische Betriebsspannung auf Anfrage) |

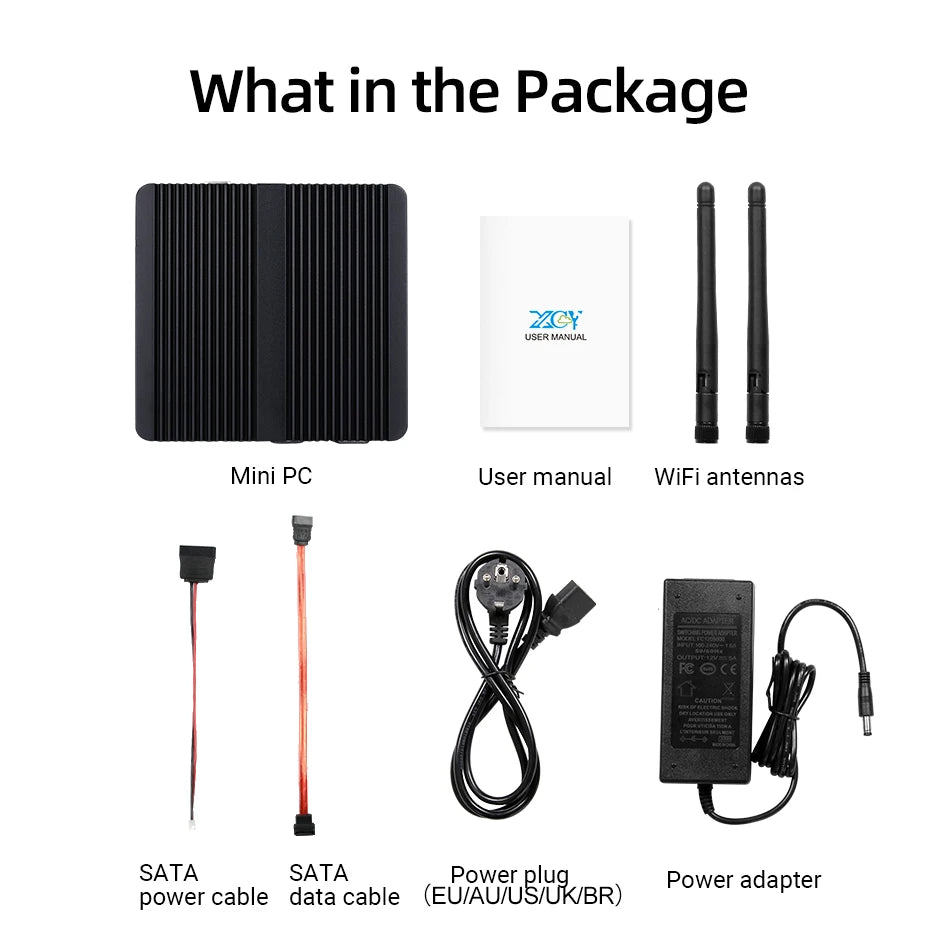

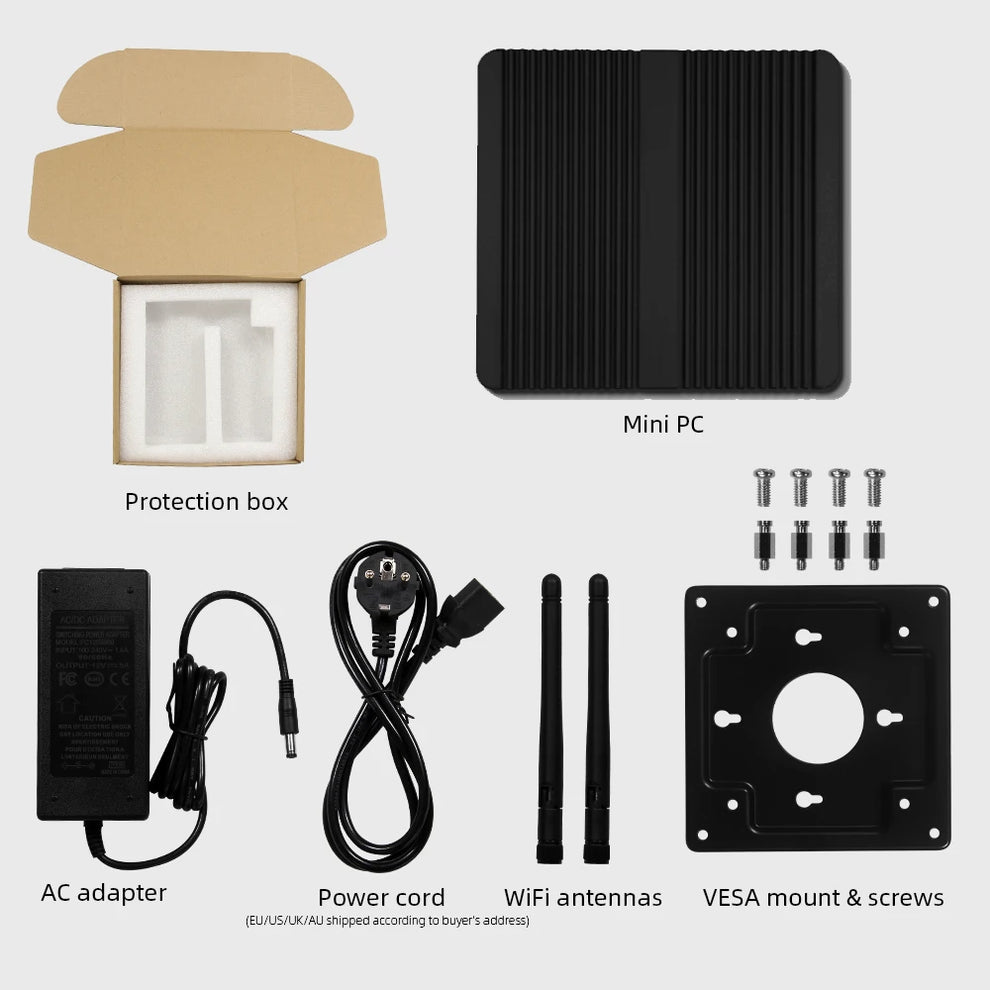

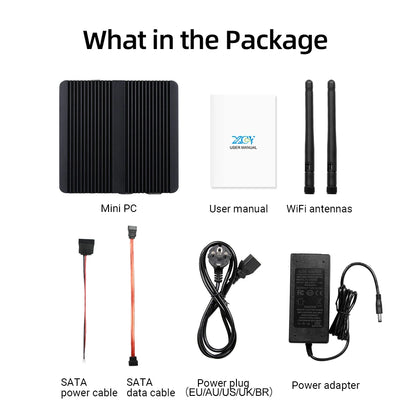

Paketliste |
1x Mini-PC X30G |
NOTIZ:

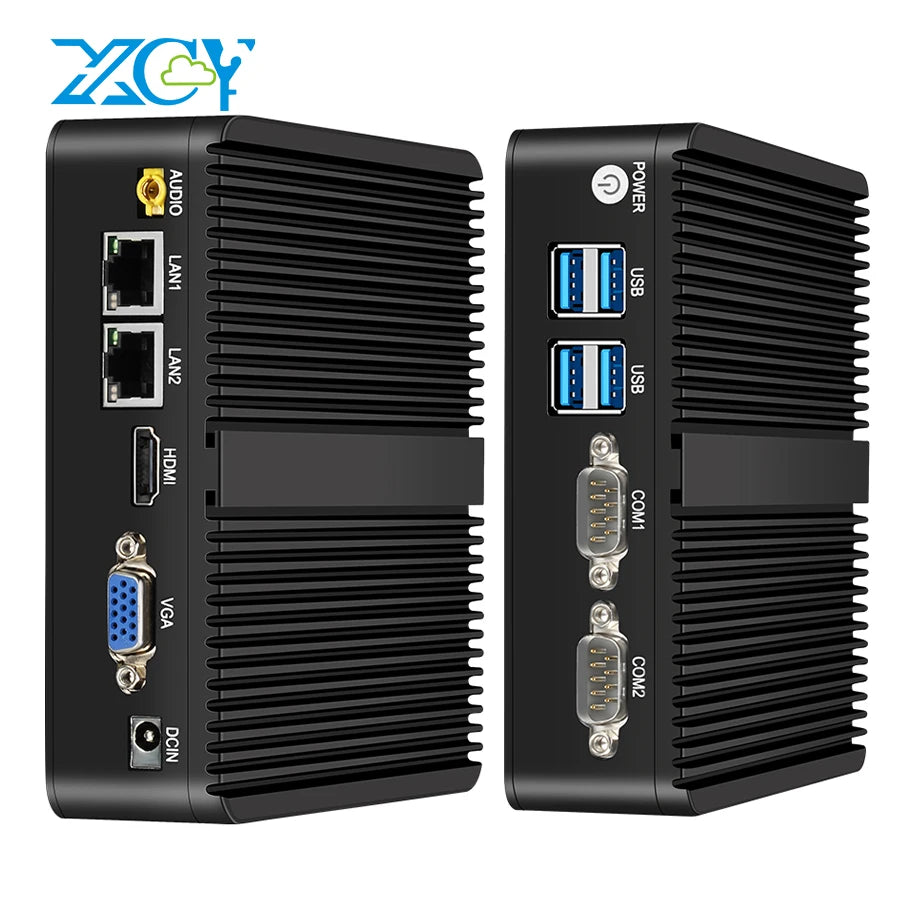

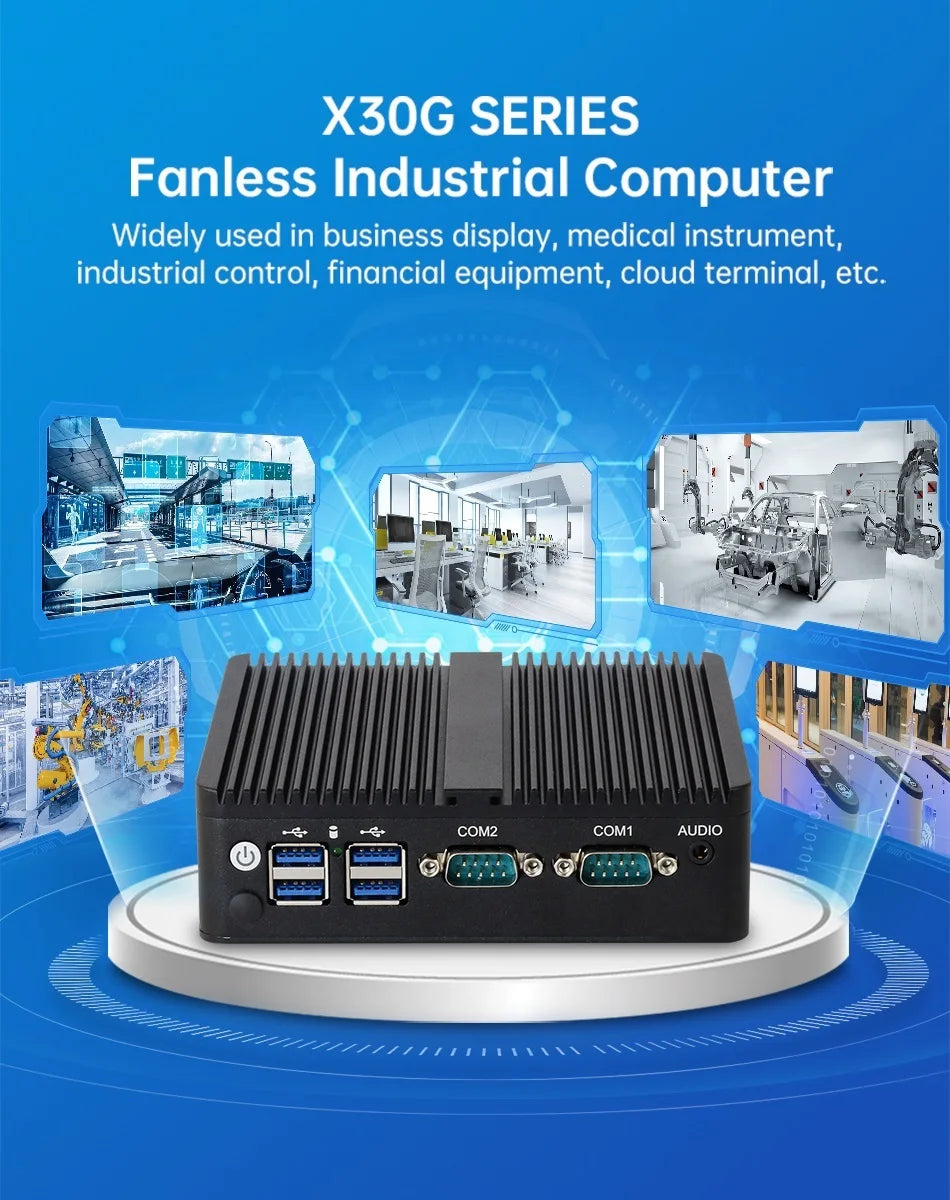

XCY X30GOS S — Industrial Fanless Mini PC
Compact. Reliable. Built for Industry.
This fanless industrial computer delivers enterprise-grade performance in a compact form factor. Perfect for automation, embedded systems, and industrial IoT applications.
Key Benefits:
Maintenance-Free Operation — Fanless design eliminates dust accumulation and mechanical failure

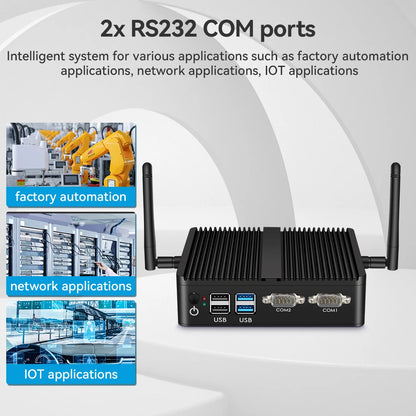

Serial Connectivity — 2x RS232 ports for legacy equipment integration
Dual Network Ports — 2x GbE LAN for network redundancy and segmentation
Wireless Ready — Built-in WiFi and 4G LTE support
Wide Temperature Range — Operates reliably from 0°C to 60°C
Compact Design — Small footprint saves valuable installation space
Multiple OS Support — Windows 10/11 and Linux compatible
Ideal for factory automation, SCADA systems, digital signage, and embedded control applications.
Technical Specifications
ProcessorIntel Celeron J6412 / N5105
Memory4GB DDR3L/DDR4 SODIMM (Expandable to 8GB)
Storage120GB mSATA SSD
GraphicsIntel HD Graphics
Display Outputs1x HDMI, 1x VGA
Ethernet2x Realtek 8111H Gigabit LAN
Serial Ports2x RS232
WirelessWiFi + 4G LTE Module Support
Audio1x 3.5mm Jack, ALC897
ConstructionAluminum Alloy, Fanless Passive Cooling
Dimensions135 x 124 x 40mm
Operating Temp0°C ~ 60°C
OS SupportWindows 10, Windows 11, Linux
CertificationsCE, FCC, RoHS
★★★★★
Kjell Eriksen:
Excellent fanless mini pc for our production line. The RS232 ports connect perfectly to our legacy PLC equipment. Running 24/7 without issues.
★★★★★
Yuki Tanaka:
Perfect industrial computer for my embedded systems project. Compact size, powerful performance, and Windows 10 runs smoothly. Highly satisfied!
★★★★★
Mateo Silva:
Best compact computer for automation needs. Dual LAN ports allow network redundancy. Fanless design is ideal for dusty factory environment.
★★★★★
Priya Sharma:
Impressive industrial mini pc with great connectivity options. The 4G LTE module works flawlessly for remote monitoring applications.
★★★★★
Lars Jensen:
Reliable fanless pc for our warehouse management system. Easy to mount, excellent thermal performance, zero noise. Will buy again.
★★★★★
Aisha Okonkwo:
Outstanding embedded computer for IoT gateway deployment. Linux support is perfect for our custom software. Great build quality.
★★★★★
Dmitry Petrov:
Solid industrial PC with all necessary ports. HDMI and VGA outputs allow dual monitor setup. Works perfectly in extreme temperatures.
★★★★★
Elena Popescu:
Perfect mini computer for our digital signage installation. Compact, silent, and powerful enough for all applications. Excellent value.
Schnelle Lieferung: 1 to 2 weeks
Versandunternehmen: DHL Paket, Hermes usw.
Rückerstattung bei verlorenem Paket.
Rückerstattung bei beschädigtem Artikel.
Rückerstattung bei keiner Lieferung innerhalb von 30 Tagen.
Kostenlose Rücksendung innerhalb von 30 Tagen.
Sicherheit, Datenschutz & sichere Zahlungen
Sichere persönliche Lieferung. Wir schützen Ihre Privatsphäre und halten Ihre persönlichen Daten sicher.
*** Einige Produkte haben unterschiedliche Regeln und Lieferzeiten.
Q: What operating systems are compatible with this fanless mini PC?
A: This industrial computer supports Windows 10, Windows 11, and various Linux distributions including Ubuntu, Debian, and Fedora. It's ideal for both commercial and open-source industrial applications.
Q: Can this mini PC operate in high-temperature industrial environments?
A: Yes, this fanless industrial PC is designed to operate reliably in temperatures ranging from 0°C to 60°C, making it suitable for factories, outdoor kiosks, and other challenging environments.
Q: What is the purpose of the RS232 serial ports on this industrial computer?
A: The 2x RS232 serial ports enable connection to legacy industrial equipment, PLCs, CNC machines, SCADA systems, and other serial devices commonly found in automation and manufacturing settings.
Q: Does this fanless mini PC support dual-monitor setups?
A: Yes, this industrial computer features both HDMI and VGA outputs, allowing you to connect two monitors simultaneously for enhanced productivity in control rooms and monitoring applications.
Q: Is the memory expandable on this industrial mini PC?
A: Yes, this fanless PC comes with 4GB DDR3L SODIMM memory (DDR4 compatible) and can be expanded up to 8GB for more demanding industrial applications and multitasking needs.
